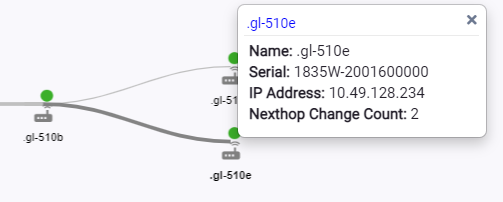

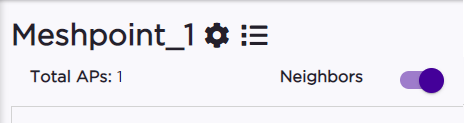

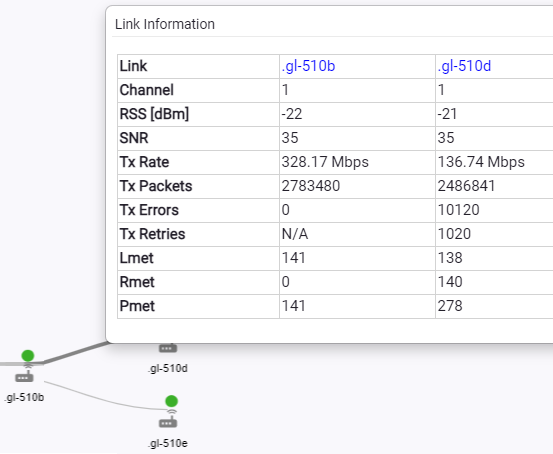

| Field | Range | Description | Directional Notes | |
|---|---|---|---|---|
| AP1 | AP2 | |||
| RSS (dBm) | -1 to -127 dBm | Received Signal Strength | Packets from AP1, detected at AP2 | Packets from AP2, detected at AP1 |
| SNR | 0 to 127 | Signal-to-Noise Ratio | Packets from AP1, detected at AP2 | Packets from AP2, detected at AP1 |
| Tx Rate (bps) (Bits per second) |
0 to 4398 Gbps (Gigabits per second) |
Moving Average of Tx PHY Rate | Tx Rate of packets from AP1, detected at AP2 | Tx Rate of packets from AP2, detected at AP1 |
| Tx Packets | 0 to 4294967295 | Count of Tx packets. | Number of Tx packets from AP1 to AP2 | Number of Tx packets from AP2 to AP1 |
| Tx Errors |
0 to 4294967295
|
Count of Tx error packets | Packet errors from AP1, detected at AP2 | Packet errors from AP2, detected at AP1 |
| Tx Retries |
0 to 4294967295
|
Count of Tx retried packets | Number of Tx packet retries from AP1 to AP2 | Number of Tx packet retries from AP2 to AP1 |
| Lmet | 0 to 8191 | Cost Metric of Link to neighbor AP. Lower value is better. | Cost of Link derived from packets that are sent from AP1 and received at AP2 | Cost of Link derived from packets that are sent from AP2 and received at AP1 |
| Rmet | 0 to 8191 | Cost Metric of neighbor AP's path to Root AP. Lower value is better. | Cost Metric reported in MCX packets sent from AP1 to AP2 | Cost Metric reported in MCX packets sent from AP2 to AP1 |
| Pmet | 0 to 16382 | Cost of Path to Root AP when the AP uses a
neighbor AP as a parent AP. A lower value is
preferred. With an active link, the AP periodically checks the threshold. Mesh ACS is triggered when the value measures below the defined threshold, initiating a new nexthop. The default threshold is 1500. Use this value to determine link stability. |
Pmet = Lmet + Rmet | Pmet = Lmet + Rmet |
.
.
.
